I N T E R I M A I R C R A F T S P E C I F I C A T I O N

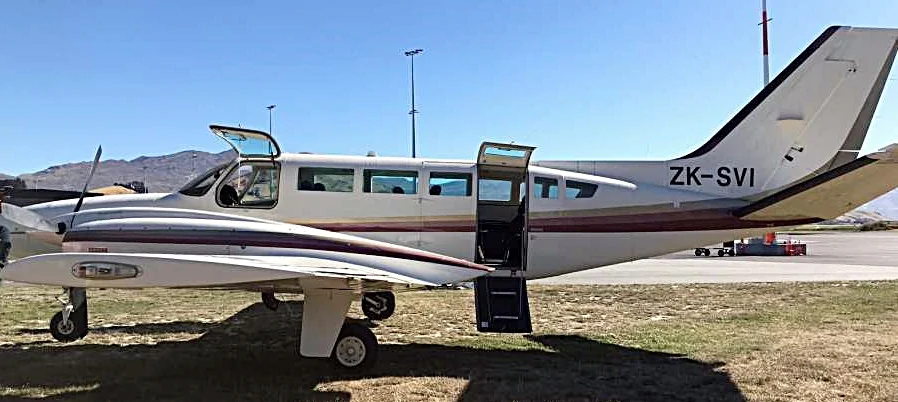

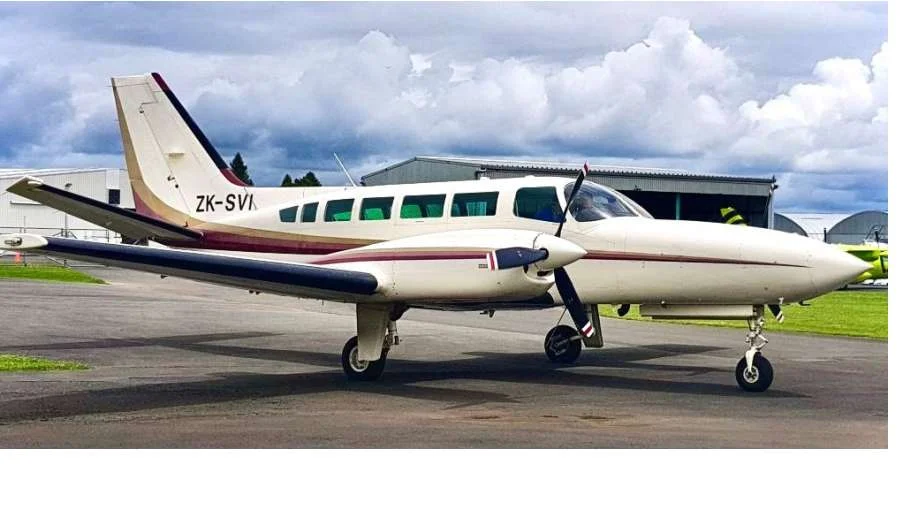

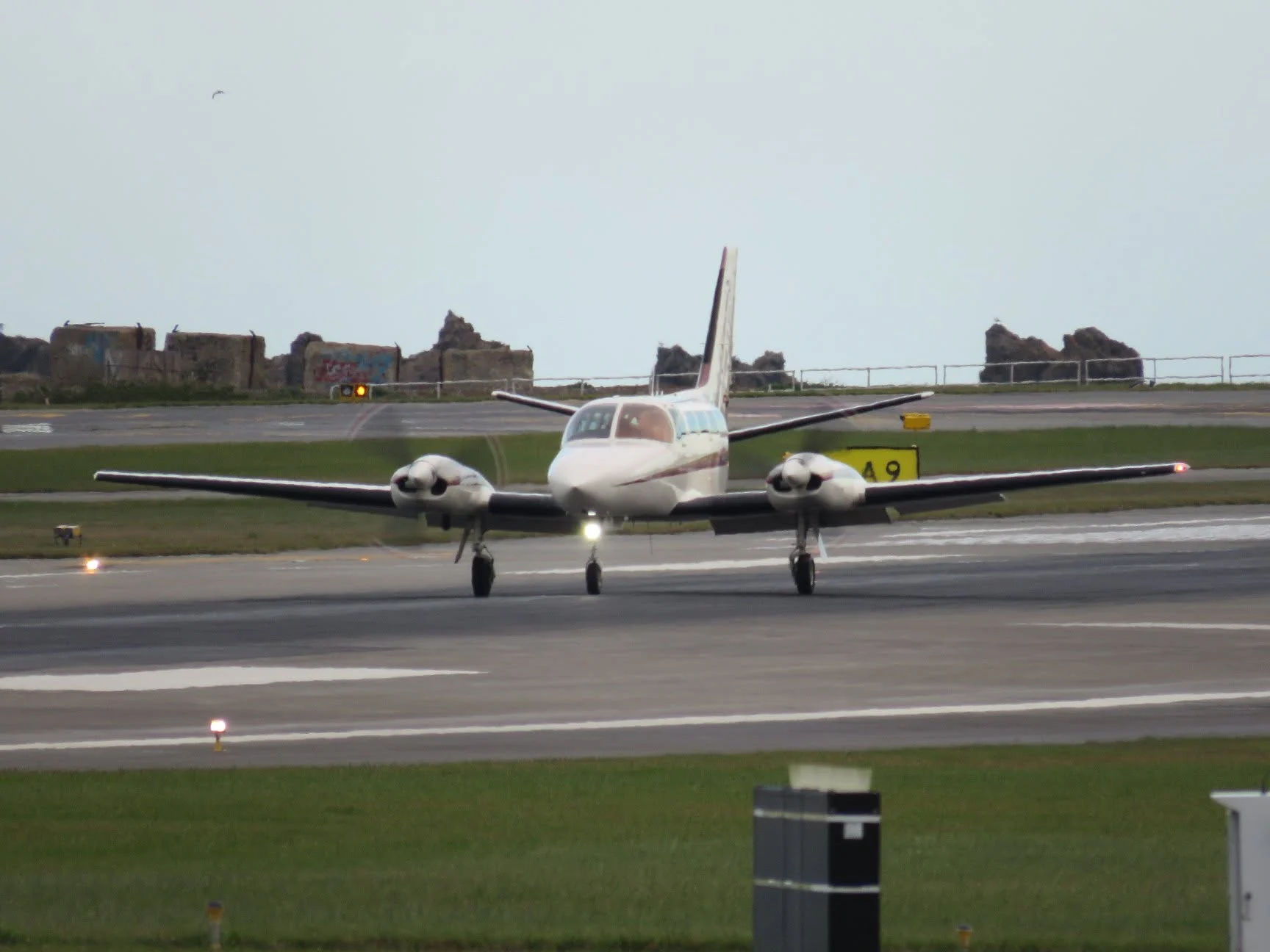

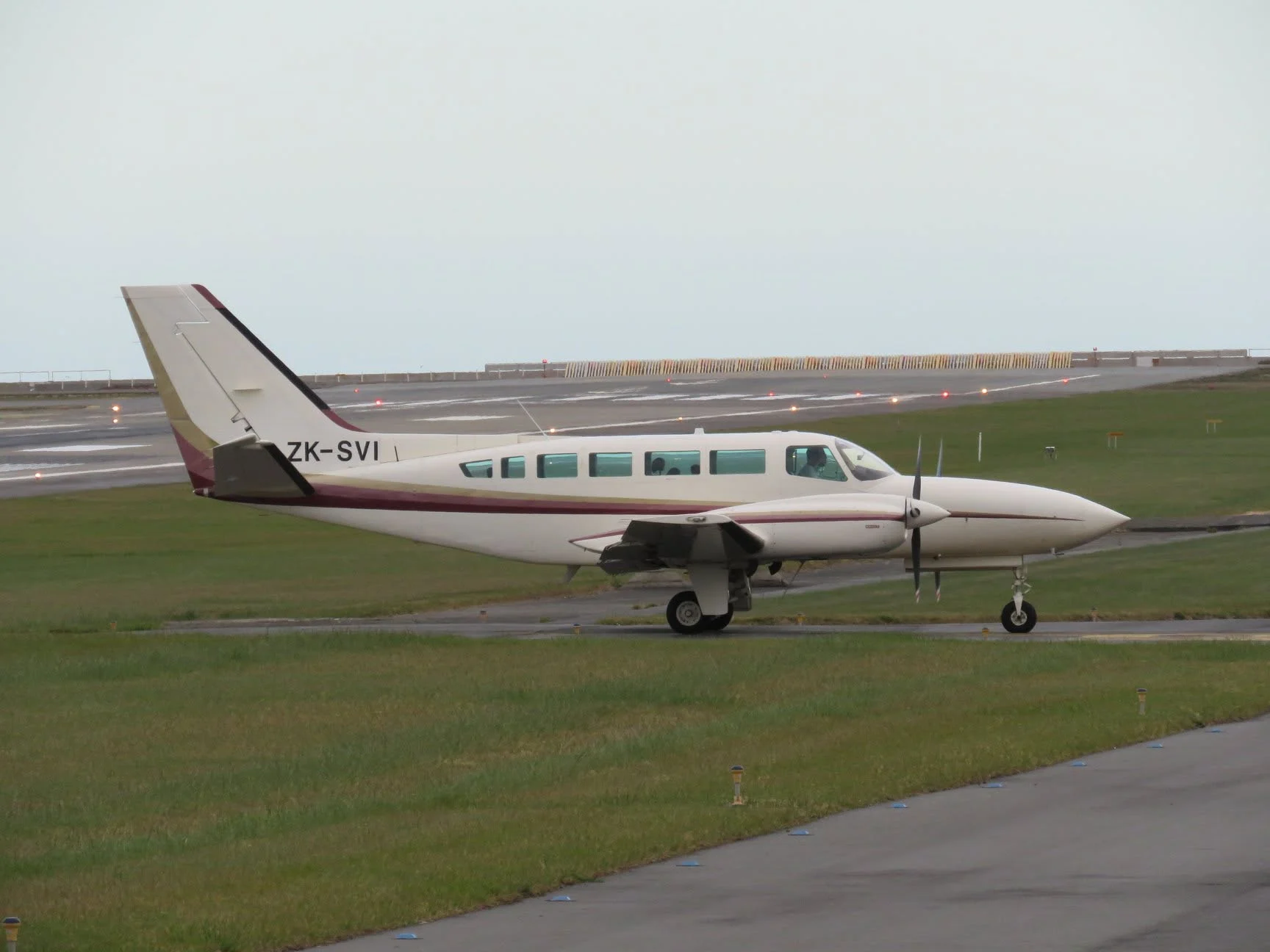

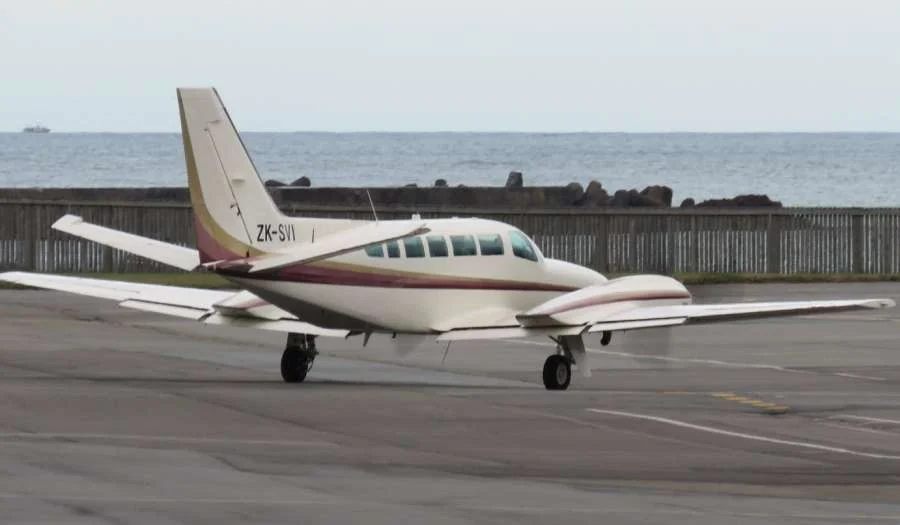

1980 CESSNA 404 TITAN AMBASSADOR
Date: 16-09-2026
Type: CE-404
Serial No: 404-0693
Year: 1980
Location: Ardmore Airport, Auckland, New Zealand
Registration: ZK-SVI

HIGHLIGHTS
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

• Low Total Time at 3,500 Hrs Since New
• Crew & cargo doors
• Full Deice. FIKI. Glass Heated Windscreen LH
• Long Range Fuel 380 USG
• SID’s and ADS-B compliant
• Engines 800/800 SMOH
• Garmin Avionics upgrade
• 7 seats total in near new condition, Club configuration plus extra seats for high density
• Complete Records. No known Damage History
• Trailing link undercarriage
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

COLOURS:

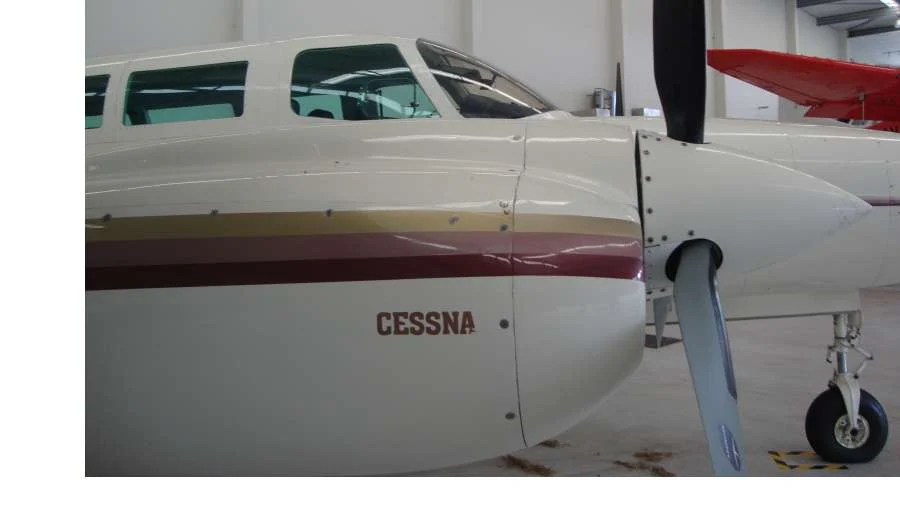

Exterior Paint: Matterhorn White with Maroon and Gold Accent Stripes. Imron. Repainted by Cessna Aircraft Company, approx. 1995. Rated 6/10. Tidy condition

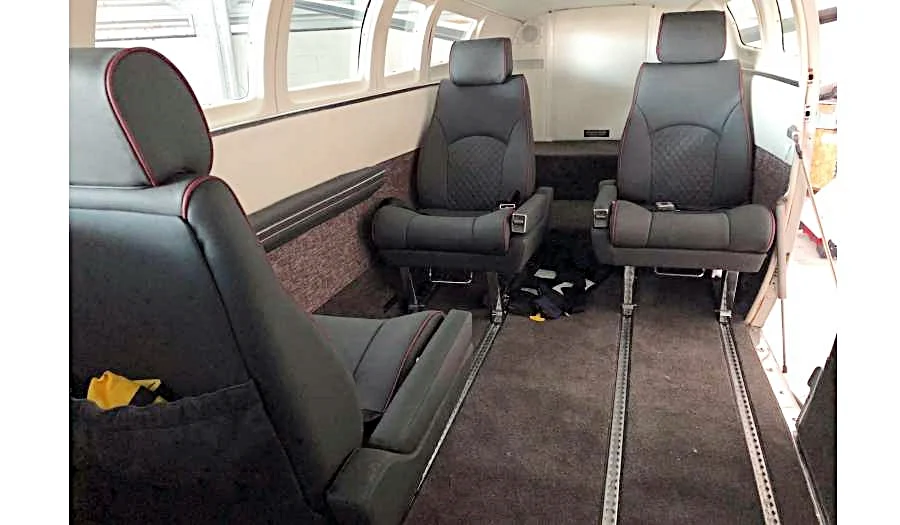

Interior: The aircraft has two interior options available and included:

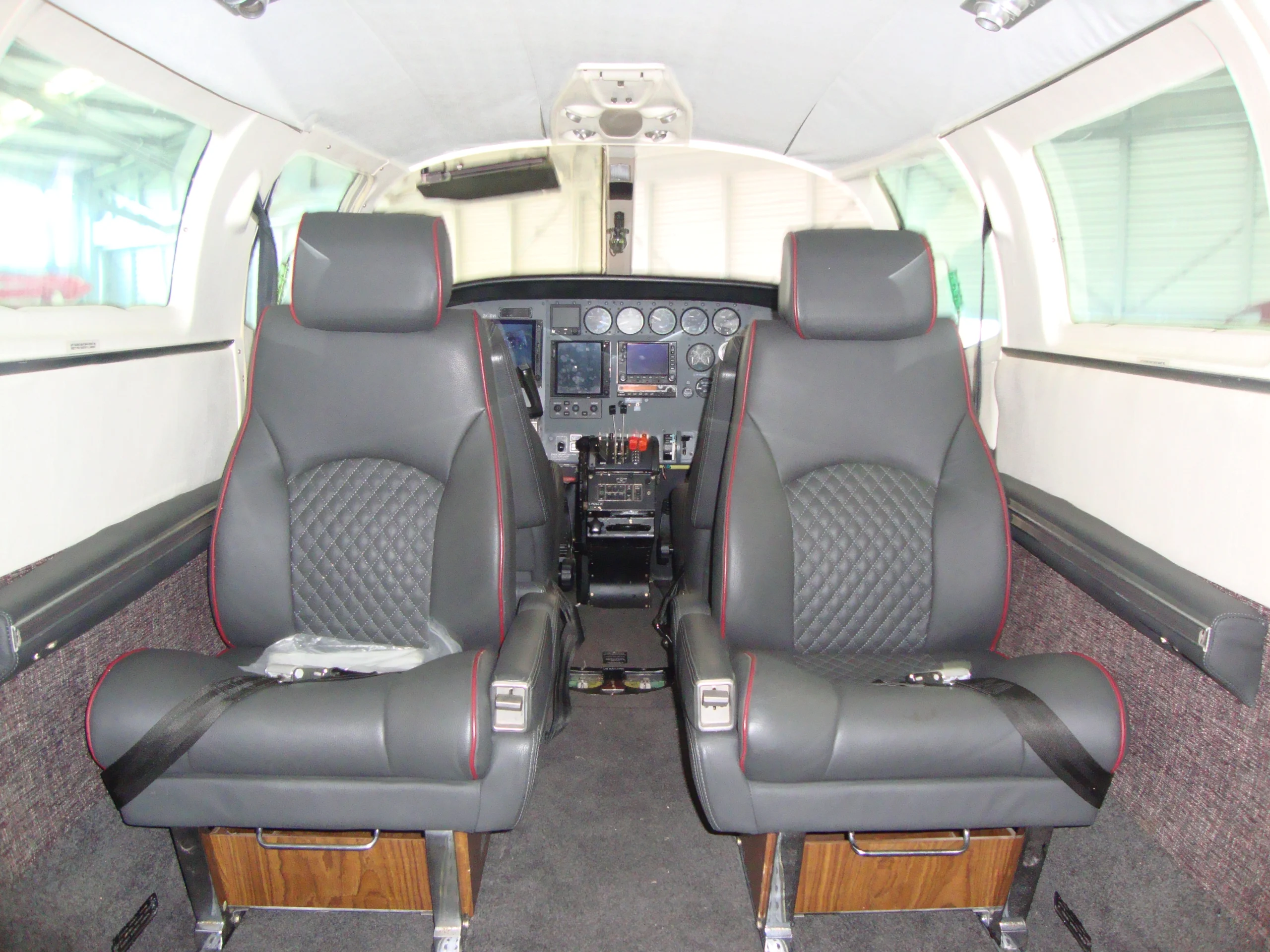

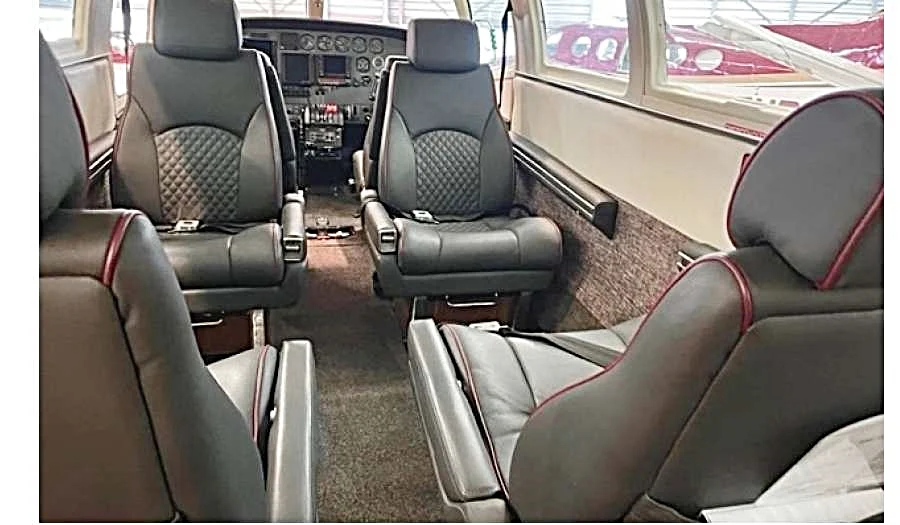

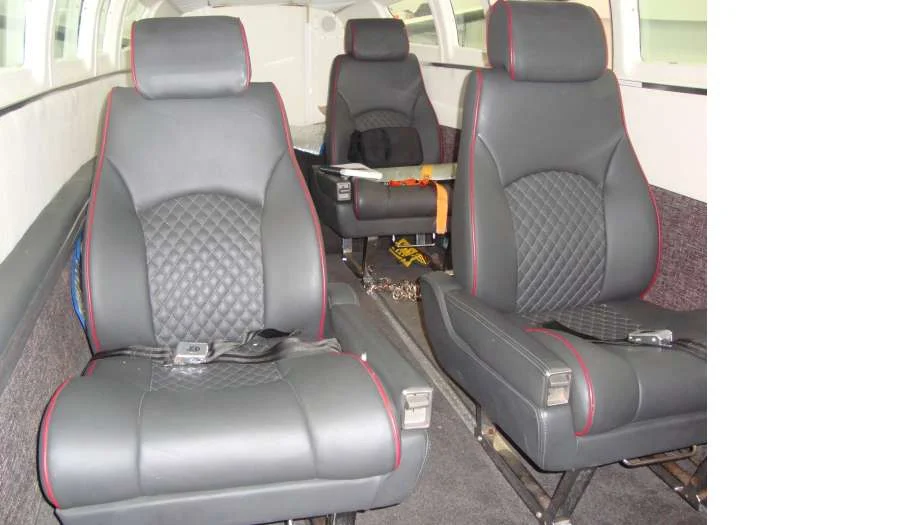

1. 4-5 place executive configuration plus two crew seats in charcoal leathers with grey fabrics new 2021. Dark grey carpets. Ivory window reveres. As new condition. Total 7 seats. Some cabinetry available but not installed.
2. Four pedestal commuter seats included for hi-density interior

Airframe: 3210.1 hours since new
Engines: Two TCM Continental GTSIO-520-M.
TBO: 1600 hours. 12 years

Left Right
Serial No: 606732 613010
Total Time Run: 3198 hrs 2671hrs
Time Since Overhaul: 791 hrs 791 hrs
Time Remaining to TBO: 809 hrs 809 hrs
Date of last overhaul: 2007 2007
Calendar Time on condition on condition

Upgrades: Alternators – Plane Power 150A, 1 per engine, fitted in 2020
Electronic Magnetos – Surely E mags, 1 per engine, fitted in 2022 under NZ engineering order.
Propellers: 3 Blade McCauley with de-ice boots. s/n 950 324 and 941 285
Both 2303 hrs since new
Both 793 hrs since overhaul
5-year calendar inspection in 2021

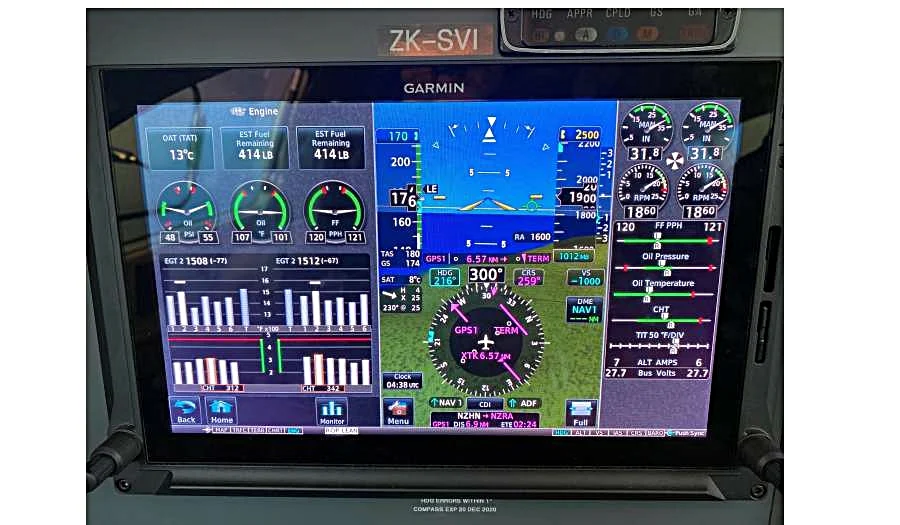

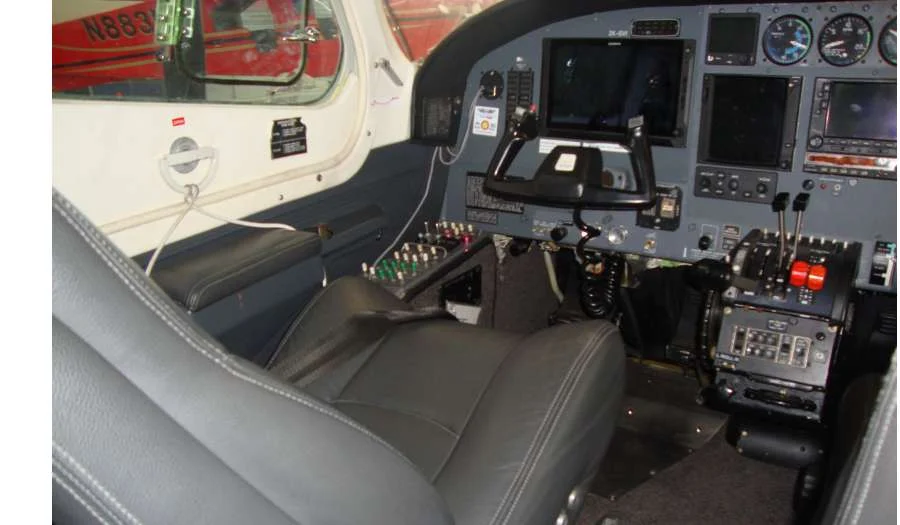

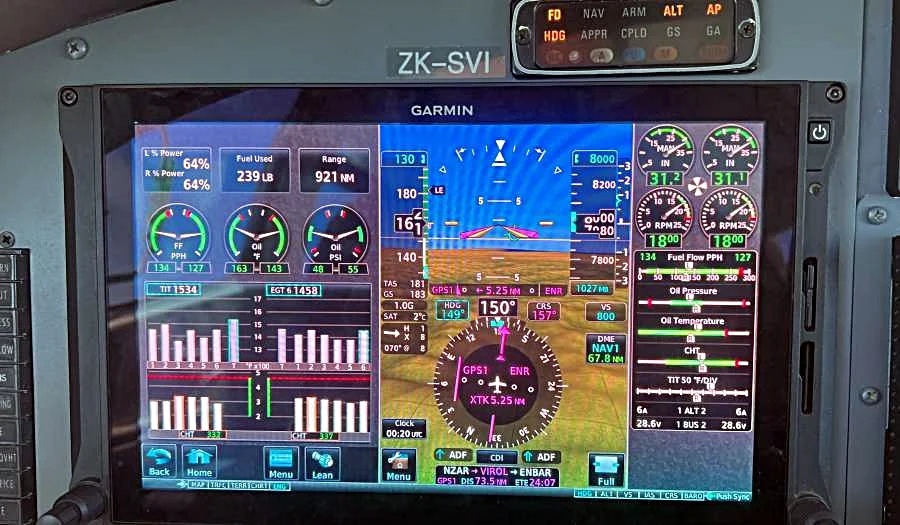

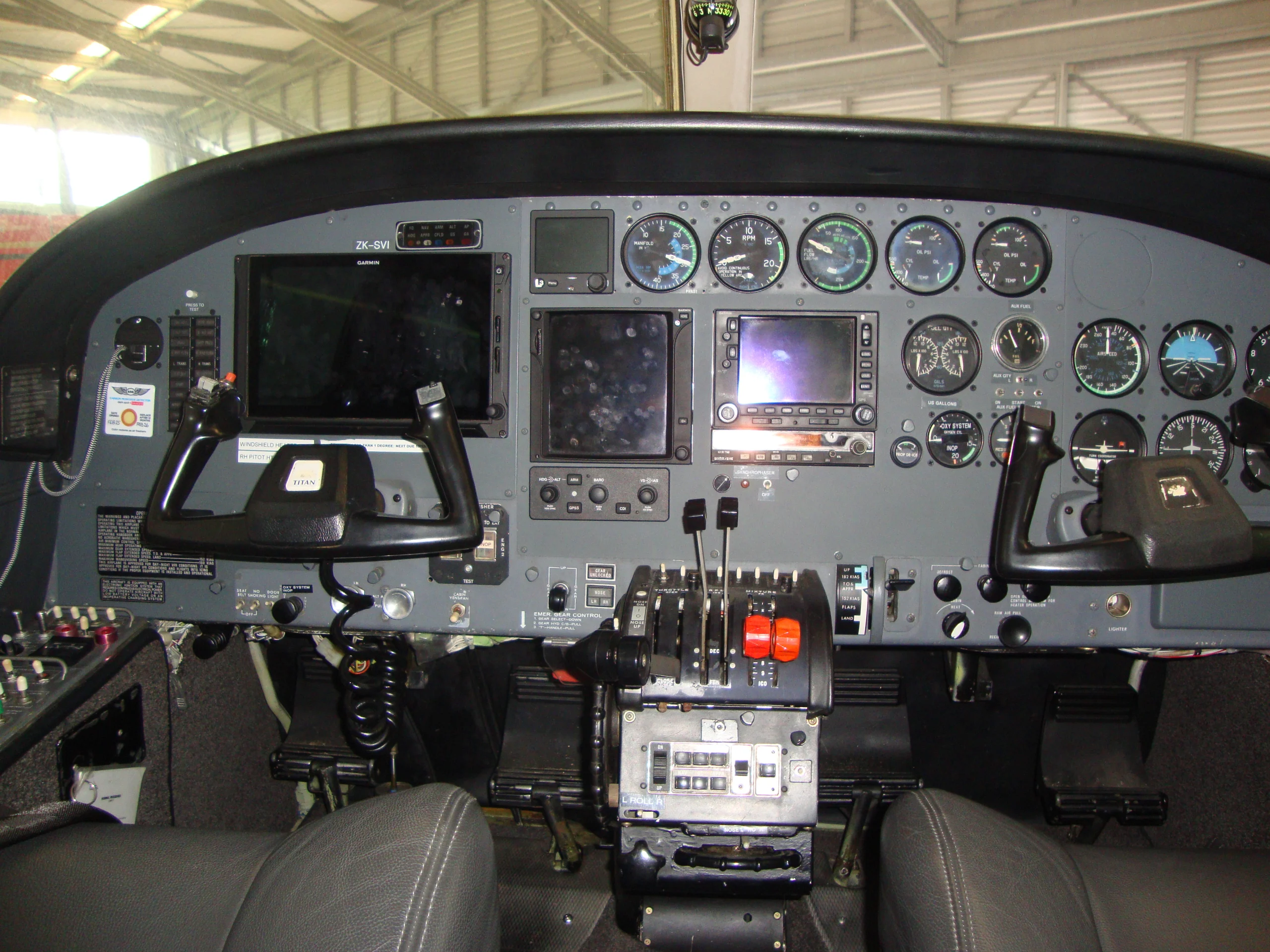

Avionics: 1. Garmin G600TXi PFD MFD EFIS System
1. L3 EIS-500 Standby AH/ALT/ASI
1. Garmin EXI EIS Twin Engine Monitoring System
1. Bendix-King KFC-200 Autopilot w/ALT Preselect via 500 TXi
1. Garmin – Autopilot Control Panel
1. Garmin GTN-750 GPS/NAV/COM
1. Garmin GNS-530W GPS/NAV/COM
1. Garmin GMA-35C Audio System
1. Garmin GTX-335R Transponder ADS-B
1. Garmin GTX-800 Traffic System
1. Bendix-King KN-63 DME
1. Bendix-King RDR-2000 Radar
1. Artex 345 ELT

Accessories: * Mid Continent Digital Clock with Dual USB Charging ports
* Deice Boots FIKI
* Copilot Instruments
* 16 USG x 2 Wing Locker Tanks
* Crew & Cargo Doors
* Factory Corrosion Proofing
* Rosen Sunvisors
* Medico Locks
* Long Range Fuel. 380 usg/1430 ltrs
* Plumbed for 10 plc oxygen (tank not installed)
* Heavy Duty Goodyear Wheels & Brakes
* Executive interior cabinetry removed and available from storage

Maintenance History:
* Imported into NZ from USA. 2008 as N6764D. Exported to Australia as
VH-ZUI August 2013. Reimported back into NZ. New NZ C of A December
2018 ZK-SVI.
* LH engine bulk stripped 2021, Both engines have new cylinders
* All new landing gear actuators 1995.
* New Deice boots and windshields 1995.
* No known damage history.
* All logbooks and records since new. USA. New Zealand. Australia.
* SIDS compliant
* New Brakes and mlg Actuators overhaul 2020
* Avionics inspection 2020

Empty Weight: 5398 lbs
Usefull Load: 3002 lbs

Remarks: Unique Immaculate Low Time Aircraft.
Recent updated Garmin ‘glass’ avionics and executive interior with extra seats
Engines “On Condition” Due 12-year Calendar

Price: US$425,000.00 plus GST if sold in New Zealand

Delivery: Immediate. Worldwide delivery arranged.

All specifications subject to verification on inspection and change without notice. Dennis Thompson International Ltd has not conducted a detailed inspection of this aircraft to verify mechanical condition, airworthiness or accuracy of specifications and documents. Prospective purchasers are encouraged to conduct their own independent pre-purchase inspection as Dennis Thompson International Ltd makes no representations as to the airworthiness of the aircraft or the accuracy of the above information. E and OE. Above aircraft offered subject to remaining unsold or withdrawal from sale.

GENERAL INFORMATION

Power: 2. Continental GTSIO-520M-37 SHP
Max Speed: 280 kts
Cruise Speed: 210 kts
Stall Speed: 70 kts
Ceiling: Both engines: 26,000 ft
Single engine: 10,100 ft

Rate of Climb: Both engine: 1575 fpm
Single engine: 230 fpm

Take-off Dis. Over 50 ft: 2,367 ft
Landing Dis. Over 50 ft: 2,130 ft
Gross Weight: 8,400 lbs
Basic Range: 553 nm
